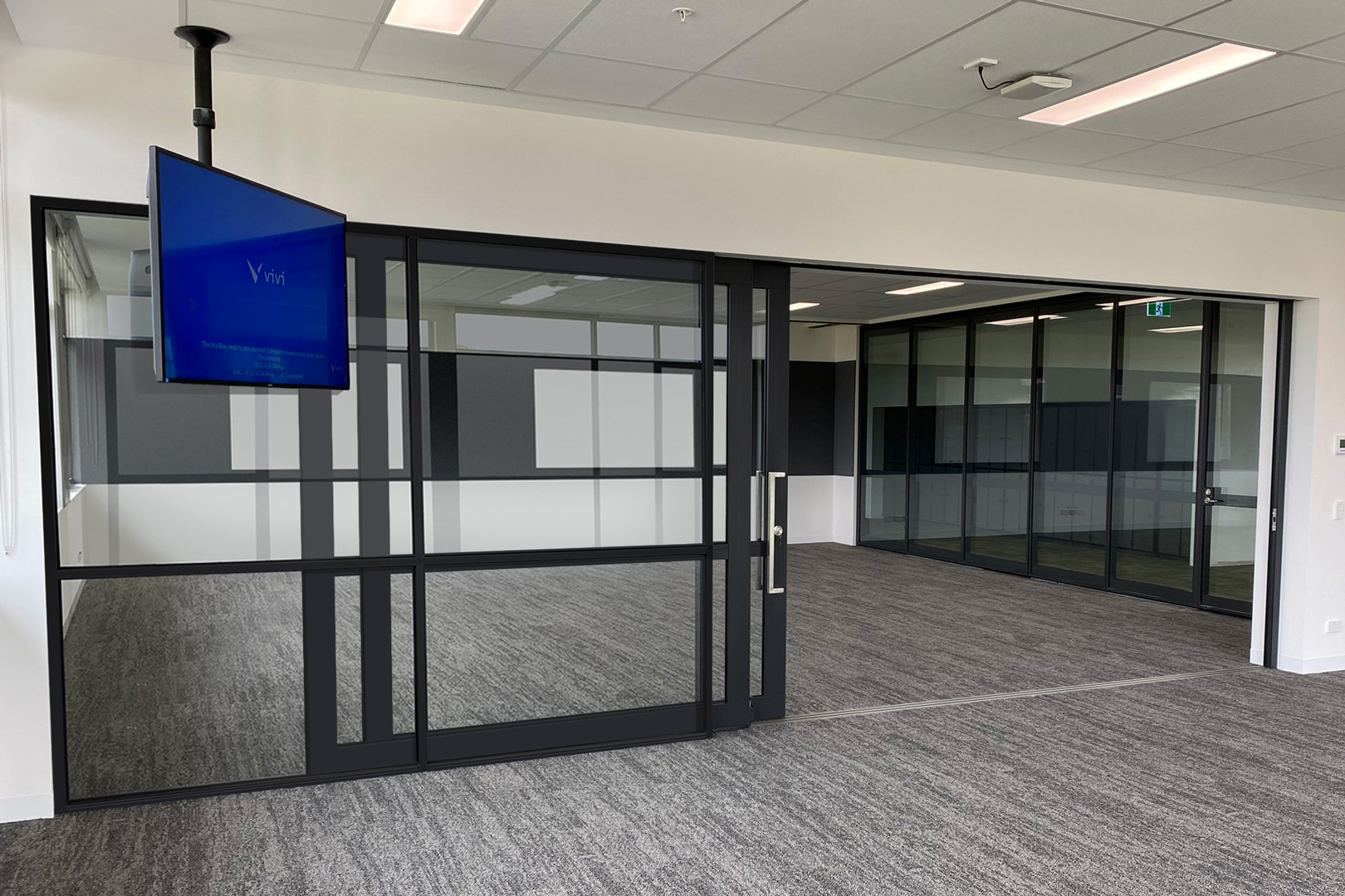

Sereine Acoustic Sliders
Refined design. Reliable performance.
The Sereine bottom rolling acoustic slider combines architectural elegance with proven performance. Purpose-built for spaces where the overhead structure limits top-hung slider options, Sereine achieves acoustic ratings up to Rw39 in glazed and Rw40 in board panel configurations.
Featuring a 50mm narrow profile, flush floor tracks, and spans up to 5m wide in a single slider (subject to performance requirements), Sereine offers slim proportions without compromising strength, safety, or accessibility.
Certified to AS1288 Glazing Standards and AS1428.1, and verified through CSIRO acoustic testing, Sereine delivers dependable acoustic separation and smooth functionality.
Ideal for education, workplace, and hospitality environments where transparency, flexibility, and acoustic control are essential, Sereine embodies GLYDE’s commitment to systems that are beautiful in form and reliable in function.
Features
Sereine Delivers
Acoustic sliders that glide with grace.
Sereine sets the standard for bottom rolling acoustic sliders by combining refined architectural aesthetics with high acoustic performance, safety, and effortless operation. Designed and manufactured by GLYDE in Australia, Sereine delivers the features of premium top-hung systems in a bottom-supported format, including our safety first anti-jump and anti-slam systems.
Choose Sereine for projects where overhead structural support cannot be accommodated.
Precision-engineered components ensure smooth, quiet, and reliable operation. Sereine offers beauty in form and reliability in function.
Sereine Acoustic Sliders
50mm Narrow Profile, reducing weight and cavity thickness
50mm Narrow Profile, reducing weight and cavity thickness
Anti-Slam (Brake) System
Anti-Slam (Brake) System
Anti-Jump System
Anti-Jump System
Recessed Tracks
Recessed Tracks
Multiple Configurations
Multiple Configurations
AS1428.1 DDA Compliant - 20N Operating Force
AS1428.1 DDA Compliant - 20N Operating Force
CSIRO Acoustic Testing
CSIRO Acoustic Testing
AS1288 Glazing Standards
AS1288 Glazing Standards

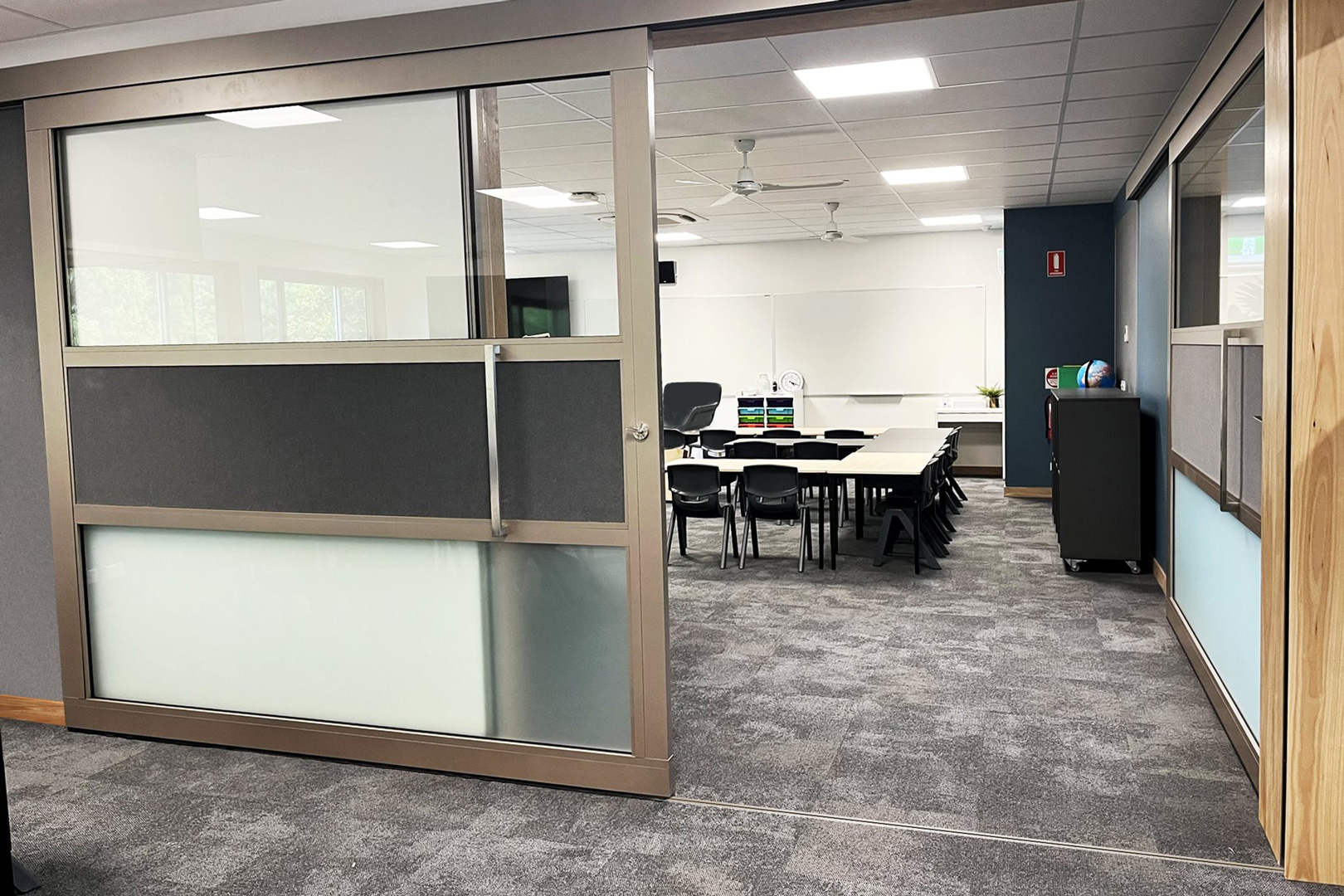

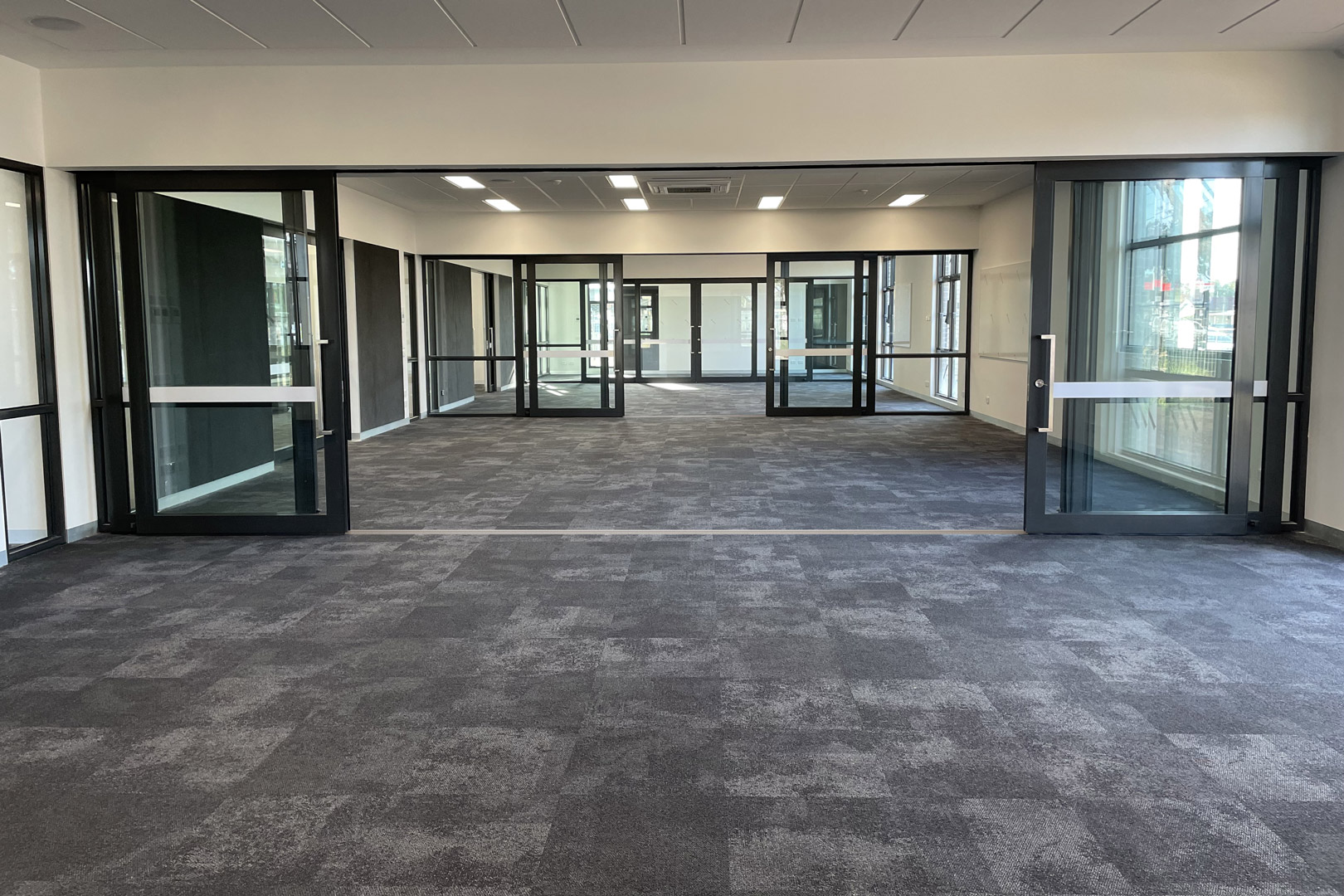

BOTTOM ROLLING
Sereine sliders require no overhead structural support. They maintain all the features and benefits of GLYDE’s Classique top hung acoustic sliding door system without the expense of the infrastructure above the slider. With Sereine, you can get a high-performance acoustic sliding door for refurbishments or other projects where the ceiling infrastructure doesn’t meet the requirements of top hung systems.
TESTED ACOUSTIC PERFORMANCE
GLYDE offers CSIRO certified test reports for our acoustic sliding doors up to Rw40 and Rw35-37 for multi-stacking dual and triple configurations. With Sereine’s noise reduction and privacy benefits, you’ll enjoy space-saving flexibility and customization options in a peaceful and practical environment.

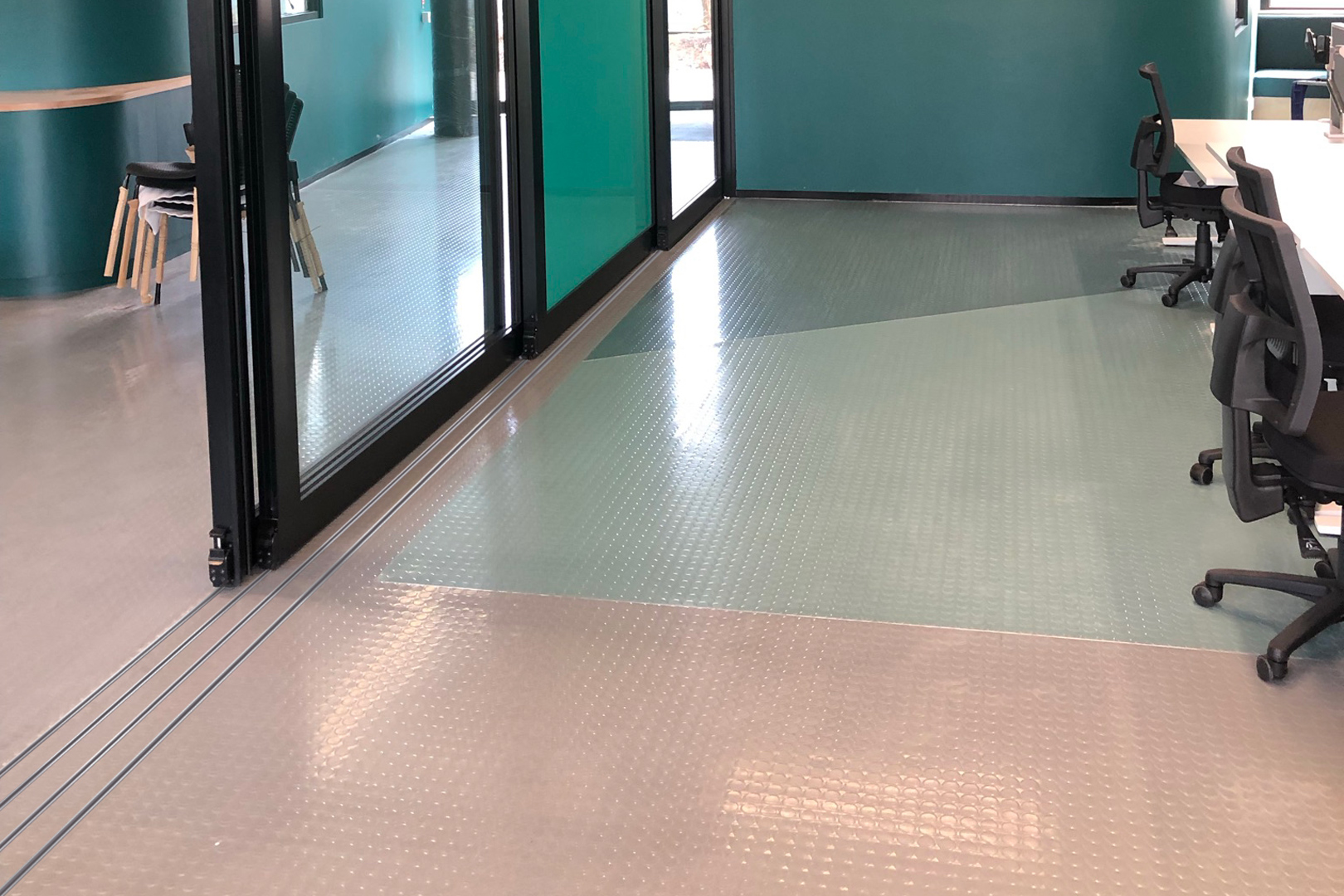

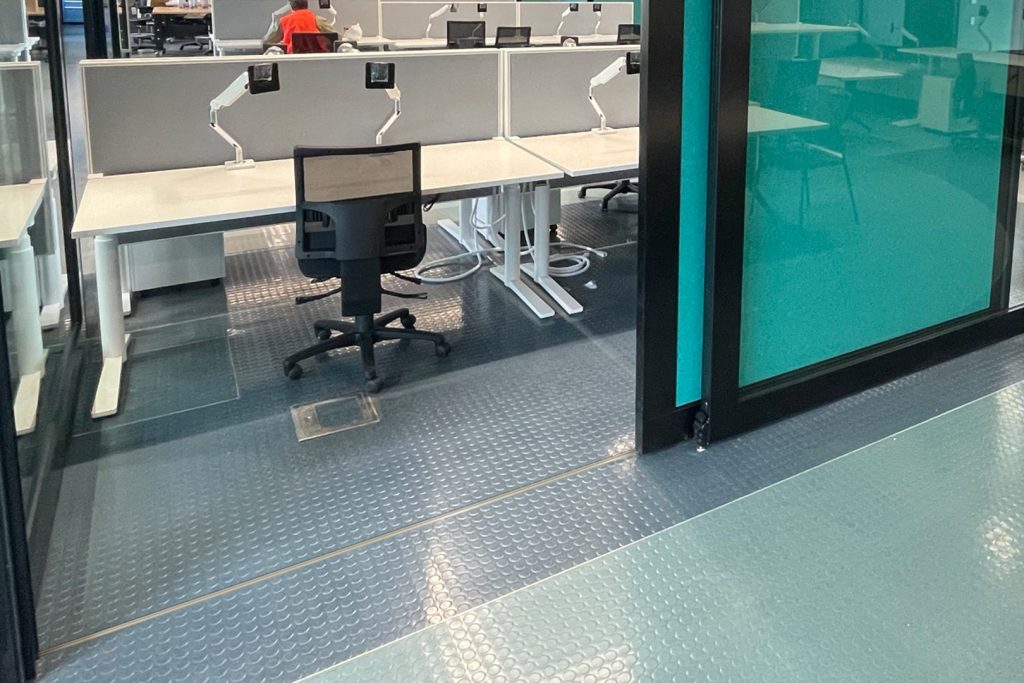

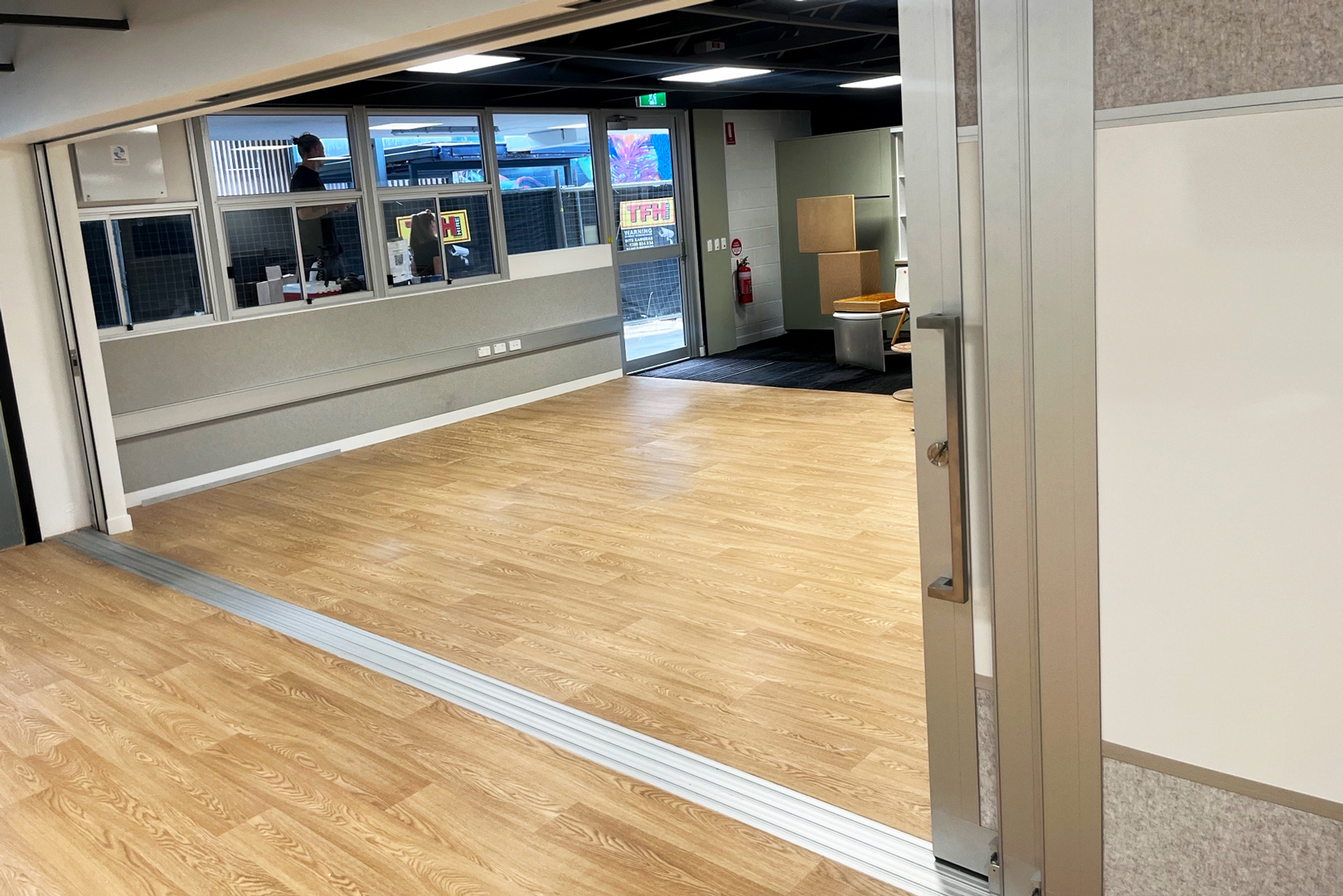

FLUSH FLOOR TRACKS
Sereine’s flush floor tracks offer a clean, modern look and improve accessibility by eliminating trip hazards. They are safer for all users, especially children, the elderly, and those with mobility aids. They make it easier to clean and create uninterrupted flow between spaces.
Bottom Rolling Sliding Doors
Sereine Acoustic Slider Features

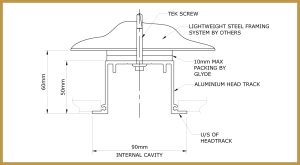

Sereine Section Dimensions
Internal Cavity Dimensions:
90mm - Single Slider; 155mm - Dual Slider; 220mm - Triple Slider
Panel Centres:
65mm
Stile Width:
120mm
Stile Thickness:
50mm
Surface Mounted Receiving Jamb:
65+/-10mm
Corner mounted Receiving Jamb:
90+/-10mm
Floor Tracks

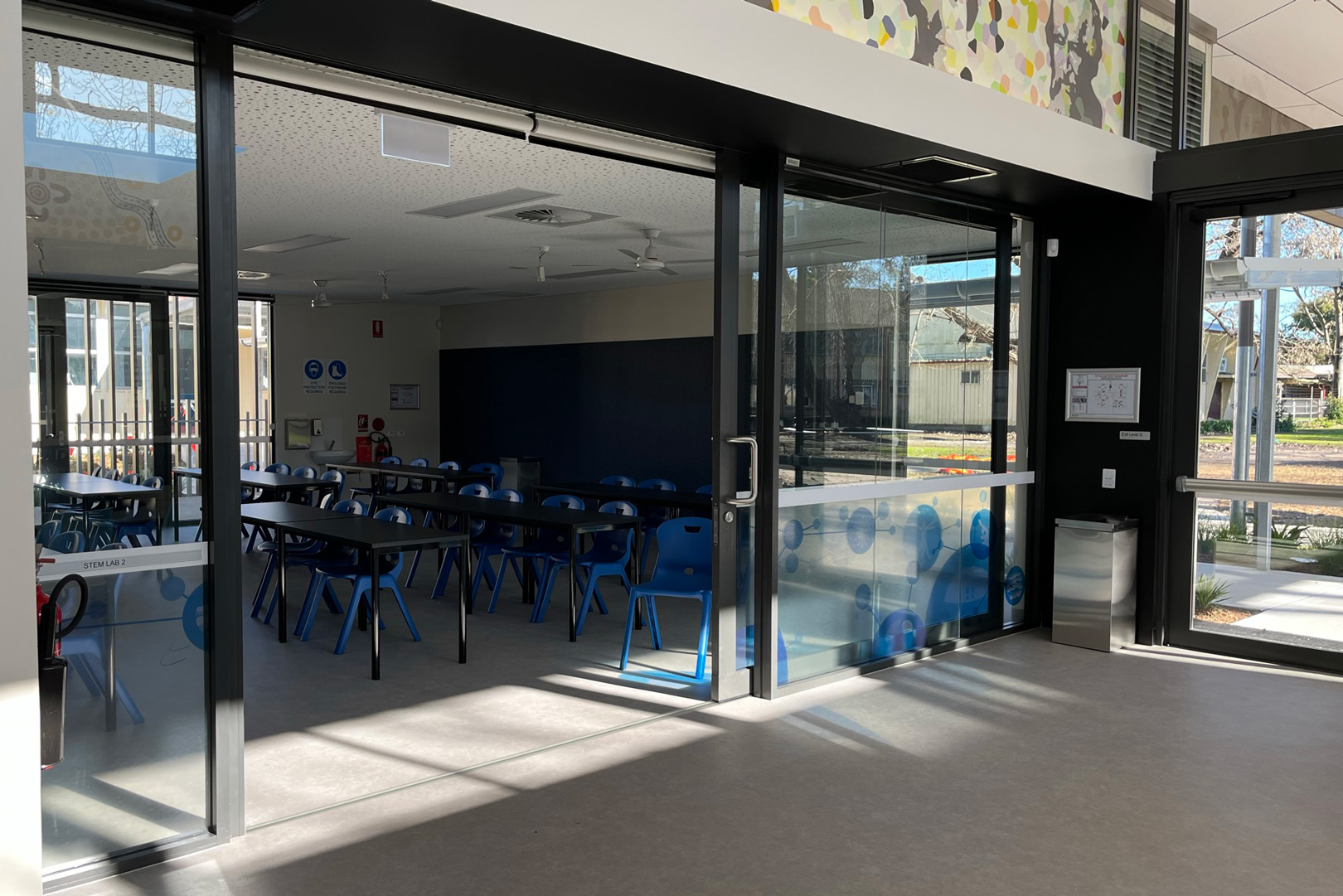

65mm
Recommended for higher acoustic rated systems

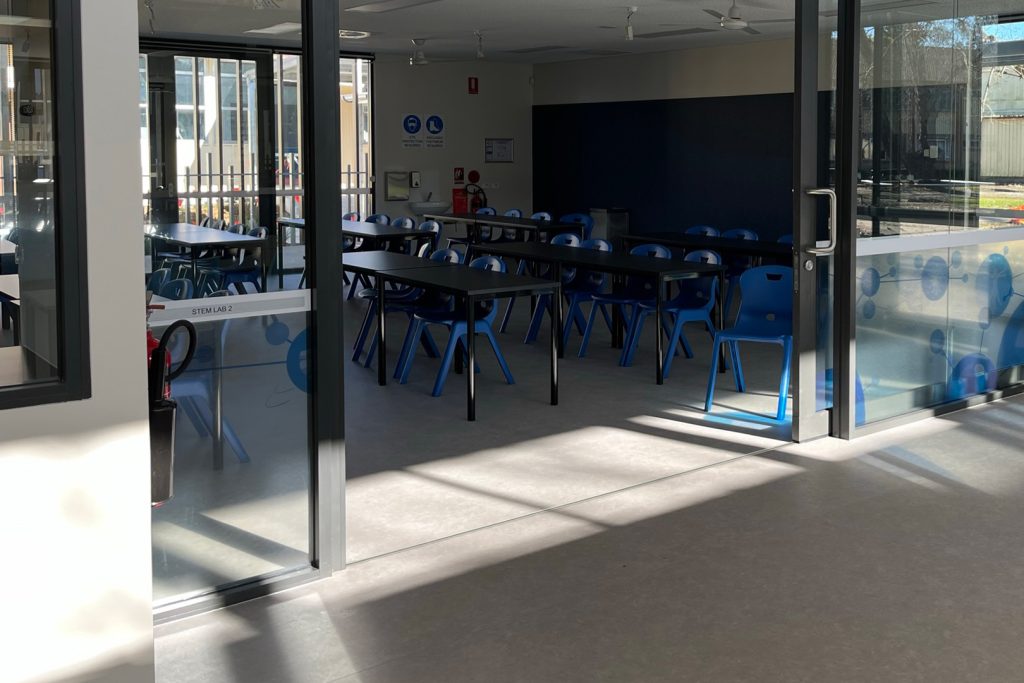

20mm
Single track configurations
Configurations
Max Panel Height:
3000mm
Max Panel Width:
5000mm
*Panel configurations dependent on:
- Rw rating
- Site access
- DDA requirements
- Weight limitations
- Glass limitations
Compliance
CSIRO Acoustic Testing:
Reports available
AS1288 Glazing Standards
AS1428.1 DDA Compliant
*Compliance dependent on:
- Rw rating
- Panel weights
- Handle locations (through glass or leading stile)
- Handle type
Acoustic Ratings & Panel Weights for Glazed Slider
Rw31:
21kg/sqm
Rw34:
29kg/sqm
Rw35:
29kg/sqm
Rw37:
29kg/sqm
Rw39:
34kg/sqm
Acoustic Ratings & Panel Weights for Board Slider
Rw30:
20kg/sqm
Rw35:
25kg/sqm
Rw40:
30kg/sqm

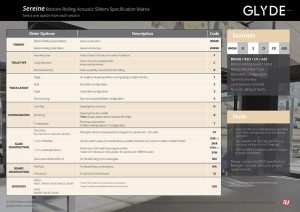

*See Specification Matrix for option
*Sqm weights do not include finishes.
Hardware Options
Standard 60mm backset lock
Varied key/snib configurations available (Master keying compatibility)
Straight handle - square or oval profile
600mm centres
Offset handle - square or oval profile
600mm centres
All handles are DDA compliant.
Consult with the GLYDE Team for alternative hardware requirements.
Glazed Slider
Midrails:
75mm (can be used in lieu of applied manifestations)
Vertical Mullion: 75mm
Structural (to accommodate extended widths)
Decorative Mullion: 55mm
Non-Structural (to accommodate handle locations)

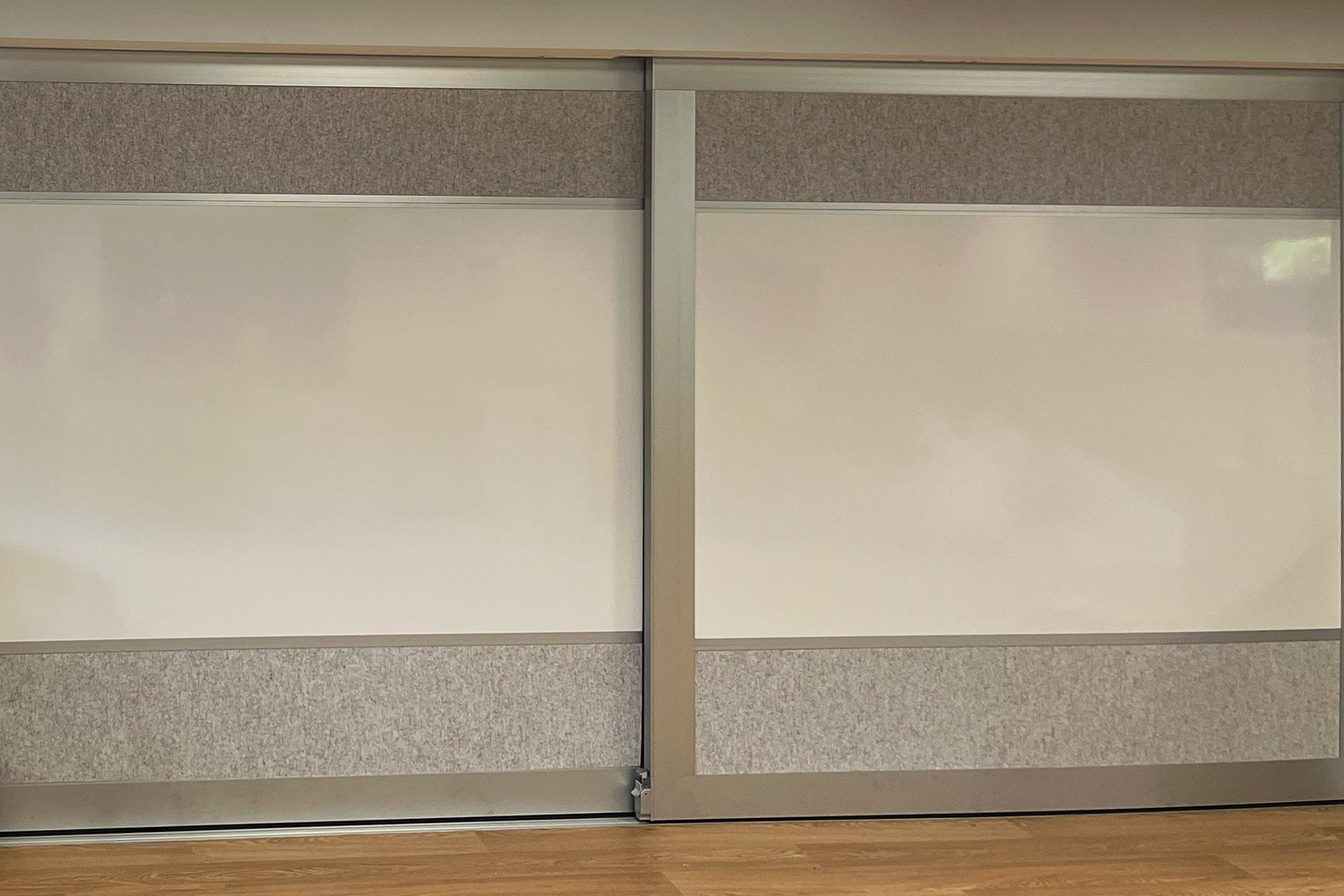

Board Slider
Midrails & Vertical Join:
22mm
Vertical Mullion:
75mm
Board/Glazed Combination Slider
Midrails
33mm
Face Mounted
Direct Fix

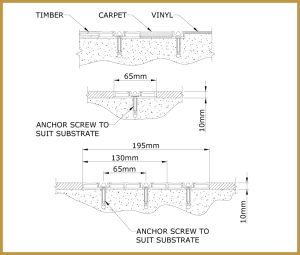

Floor Tracks
Compatible with the following substrates:
- Steel stud and track framing system (Rondo)
- Timber
- Structural steel
- Concrete
Minimal structural requirements due to slider mass being taken by floor.
More flexibility with timing of installation.
Integrated Anti-jump device to prevent derailment.
Floor track compatible with all finished floor types:
- Carpet
- Vinyl
- Timber
- Tiles
- Concrete
Can be direct fixed or rebated into substrate.
No exposed fixings and anti-slip surface.
Lead Stile
Trailing Stile – Face Mounted Slider
Trailing Stile – Cavity
Standard Jamb
Face Mounted Jamb
Dual Slider

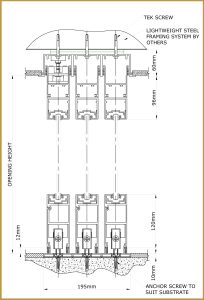

Triple Slider
Dual Cavity Slider
Triple Cavity Slider
Safer Acoustic Sliders include GASS
GLYDE Anti-Slam System
The GLYDE Anti-Slam System (GASS) slows down the door before it reaches the receiving jamb. No smashed fingers. No slammed doors. The ultra-safe Sereine Sliders are a smart, safe solution for education projects.
The GLYDE team puts safety first with every system. Our engineers incorporated built-in dampeners to make it ultra-safe when users are opening and closing the doors.
Watch the short video to see it in action. >>
Fixed Framing aligned with GLYDE acoustic sliding doors
GLYDE Fixed Framing
Complete your design for flexible spaces with GLYDE Fixed Framing
The GLYDE Fixed Framing range accompanies GLYDE Acoustic Slider systems to create beautiful, functional learning and corporate environments. They can be brilliantly employed in a range of applications and configurations.
Please note, the fixed framing option is only available in conjunction with our door systems.
Fixed Framing Features
100mm x 44mm frame
✓
Accepts 6mm to 12.5mm glass
✓
Centre glazed
✓
44mm integrated midrails
✓
80mm surface mounted midrails
✓
Optional low profile 25mm outer frame
✓
Integrates with GLYDE slider systems
✓
Can the bottom roller system dislodge, come off the track or fall down, and does it have a braking mechanism like the top hung systems - are there any safety concerns around this system?
No, Sereine’s rollers can’t come off the tracks.
And yes, Sereine does feature the GLYDE Anti-Slam System our Classique sliders also use.
Sereine bottom roller suite incorporates a unique anti-jump mechanism and is retained in the head, the panels cannot fall.
Both our Classique top hung and Sereine bottom roller systems include our GLYDE Anti Slam System (GASS) proven safety braking mechanism. Combined, these features are unique in the Acoustic Slider industry.
Do we need to incorporate floor tracks when specifying large format sliders or multi-stacking sliders?
GLYDE offers Top Hung Classique, requires no floor track, and Bottom Roller Sereine , does use a floor track. You can choose which system will best meet the needs of your project.
What are the advantages or disadvantages of top hung systems?
The advantage of a top hung system is no bottom floor track required. This gives a seamless flow and ensures no trip or access issues. Longevity of the systems benefit as there is no potential damage or wear to a floor track system.
Disadvantage of a top hung acoustic sliding door system is that structural overhead support is required. This may create challenges in refurbishment projects or add costs to new builds. The Sereine bottom roller system solves both these challenges.
Can we achieve DDA compliance with either system?
Yes.
GLYDE’s default specification ensures compliance for operating force and circulation requirements, such as handle positioning. We advise you of suitable configurations and panel sizing and weights to comply during design consultations.
When our team is advised DDA compliance is not required, we can adjust specifications and advise of configurations.
We are interested in incorporating some glazed sliders and some solid whiteboard sliders in our project; can this be done in either top hung or bottom roller systems?
Yes.
Sereine acoustic sliders and Classique acoustic sliders offer a wide variety of configurations in both formats. We can even incorporate glazed and solid sections in the same panel.
Talk to our team to learn how to specify a sliding door system that features glass and solid panels and/or sections within the same panel.
